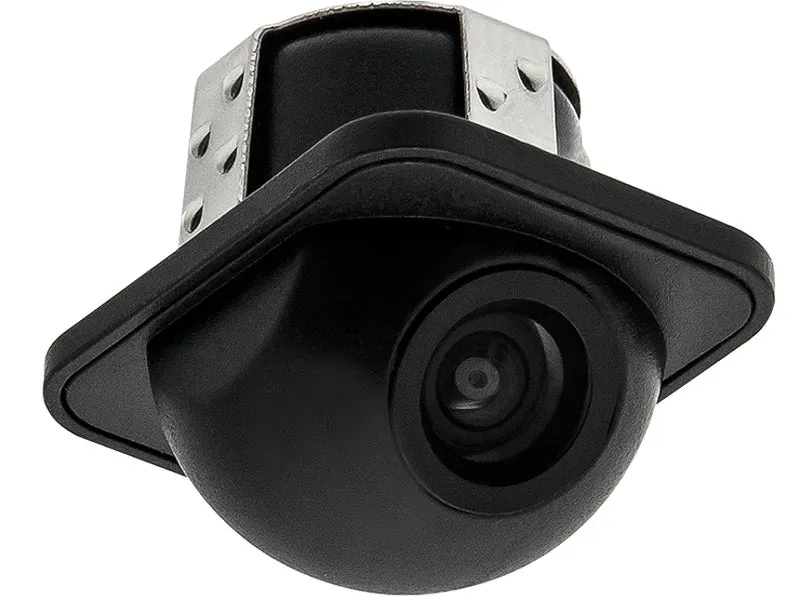

Reversing camera BLOW BVS-541 Wired ch. 648X488

The reversing camera is a modern system designed for motor vehicles. It checks the space behind the vehicle during reversing procedures. The device assists during reversing, but does not relieve the driver from the special attention required during reversing. The set is adapted for mounting in passenger cars and delivery vans.

- Image sensor: 1 / 3.6 inch CMOS
- Measurement area: 4.9X3.7
- Lens: F = 1.9mm / F = 2.0
- Signal system: PAL
- Horizontal synchronization (KHZ): 15.625 / 15.734
- Vertical synchronization (HZ): 50/60
- Horizontal definition: 480 TV lines
- Minimal lighting: 0.01 lux
- Signal / noise ratio: <48.0 [dB]
- Image sensor angle: 170 °
- Horizontal viewing angle: 120 °
- Vertical viewing angle: 90 °
- Diagonal angle of view: 165 °
- Voltage range: 9 ~ 16V DC
- Video output: 1.0Vp-p / 75Ω
- Working temperature: -20 ~ + 70 ° C RH 95% Max.
- Storage temperature: -30 ~ + 80 ° C RH95% Max.

- Reversing camera BLOW BVS-541 Wired
- Manufacturer's packaging
- The proof of purchase

- Water resistance class: IP67
- Resolution: 648X488
- Automatic regulation of gain and regulation of the rear lighting
